Replacement For OMS OX-AN Oxygen Analyzer

OEM Equipment:

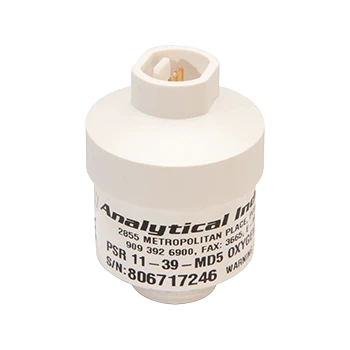

OMS OX-SNSR Sensor

Advanced galvanic type oxygen sensor with excellent stability and accuracy under stringent applications. All sensors are subjected to the most extensive stability test, output in air, 30″ of water column pressure test and stability at 100% oxygen. The widest range of oxygen sensors offered by Analytical Industries, Inc. are “Made in USA”

Technical specifications:

Measuring Range 0-100%
Accuracy 1 +/-2% of Full Scale
Signal Output 2 23 – 27 mV
Linearity +/-2% of Full Scale
Response T90 6 sec
Temperature Coefficient Compensated
Operating Temp 0 to 45°C
Recommended Storage 3 0 to 25°C
Shelf Life 4 6 months
Humidity Non-condensing 0-99% RH
Expected Life 42 months
Warranty 5 12 months
Electrical Conn 3 Pin Molex
