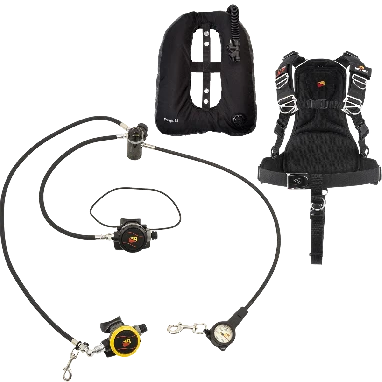

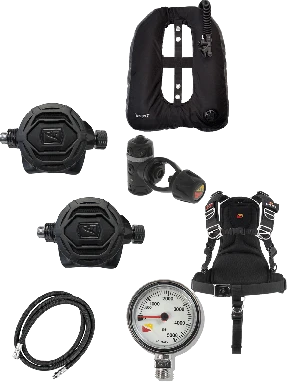

Dive Rite Open Water Regulator And BC Package

Streamlined open water regulator package, utilizing a fixed turret regulator for optimal hose routing.

The XT Advanced Open Water Regulator Package draws from our technical roots, for a regulator setup that any diver can appreciate. The XT Advanced Open Water Regulator Package consists of our XT1 High Performance First Stage, a matched set of XT2 Balanced Second Stages, and a Mini Tech 2″ SPG. Along with all of the main components, accessories such as clips and necklaces are included.

With its optimal hose routing, there are no dangling hoses to get snagged on the dive. The primary second stage is routed under the divers arm on a 40″ flex hose with an angled adapter. This routing keeps the hose from flaring out and the longer hose allows for comfortable air sharing in an emergency situation. The backup second stage is on a 22″ flex hose with necklace to be quickly accessed if needed. The high quality Mini Tech 2″ Brass SPG is on a 32″ flex hose with boot and stainless clip to be attached on the waist or chest D-ring for easy viewing.

For transporting your XT Advanced Open Water Regulator Package to and from the dive site, a carrying bag is included.

Available in Yoke or DIN.

TECHNICAL DETAILS

XT1 First Stage
(2) XT2 Second Stage, Rubber Cover or (2) XT4 Second Stage
40-inch LP hose
22-inch LP hose
Right angle regulator adapter
Regulator necklace
2-inch SPG with 32-inch hose
Small swivel bolt snap
Hose clip retainer
Regulator Bag



SUPERIOR COMFORT

Soft Backplate. Flexible And Comfortable On The Back

Wrap-Around Hip Pads. Dual Density Foam Pads Provide Cushioning And Support And Help Distribute Weight Evenly Across The Hips And Back

Ergonomic Shoulder Pads. Double-Foam Pads Under The Webbing Strap Provide Padding Comfort To The Shoulder Area

Lumbar Support Pad. Molded Foam Pad Contoured In The Right Places With Mesh Airflow Channels Provides Added Comfort And Instant Water Draining When Topside

Chafe-Free Comfort. The Padded Shoulder Straps And Hip Straps Provide A Chafe-Free Diving Experience

Backpacking Style Waist Belt. Supports And Balances Weight Across The Hips And Back For Even Distribution Of Weight In And Out Of The Water

Load Distribution. The Chest Strap Along With The Crotch Strap Work Together With The Backpacking Style Waist Belt And Pivot Ring Shoulder Straps To Evenly Distribute Weight For Maximum Stability And Comfort In The Water.

SPECIFICATIONS TRANSPAC XT
Sizes: Men: M-XXL / Women: XS-MXXL
1000 denier ballistic nylon backplate
Marine grade stainless steel
2- and 1-inch D-rings
Acetyl resin quick release buckles
2-inch (50 mm) webbing rated at 7,000 pounds breaking strength
2 x 36-inch (5 x 91.4 cm) cam straps
1.5-inch (3.8 cm) crotch strap
Weight:
XS/SM: 4 lbs 4 oz (1.92 kg)
MED: 4 lbs 8 oz (2.054 kg)
LG: 4 lbs 12 oz (2.15 kg)
XL: 4 lbs 14 oz (2.20 kg)
XXL: 5 lbs (2.23 kg)

A lightweight wing designed for single-tank, warm water diving, our Travel series of wings are small-profile and ideal for travel and divers who wear a minimal amount of weight. At 25lbs/11.3 kg of lift, the Travel can accommodate one 80ft3/12 L tank with no more than 16lbs. of additional weight.

With its donut-shape, the Travel wing provides greater stability and control in the water. Donut-style or 360 degree wings promote an even volume of inflation on top, sides and bottom, which improves buoyancy control and promotes a more efficient, horizontal trim.

Divers may choose from our value-driven and durable 1680 ballistic nylon EXP material or our SuperFabric® brand technology XT material that we’ve married with a 1000 denier Cordura® inner shell to create an armor-clad outer bag that is impervious to damaging pinches and cuts. Both the Travel EXP () and Travel XT () are further enhanced with a heavy-duty, 210 denier nylon laminated bladder. They are backed by our WORRY-FREE LIFETIME GUARANTEE and are made exclusively in the U.S.A.

As a part of our modular BCD system, it can be matched with either a TransPac® XT, Transplate or any metal backplate and webbing harness.

• Travel EXP outer bag is made of durable 1680 denier ballistic nylon that resists tears and abrasion
• Travel XT outer bag is made of SuperFabric brand technology and 1000 denier Cordura® offering superior durability.
• Inner bladder is constructed from heavy-duty 210 denier nylon laminated bladder which is highly resistant to pinches and punctures
• Urethane flanges are welded in place, which make it easy to switch out corrugated hoses and over pressurization valves without tools.
• Comes equipped with choice of 16-inch rapid exhaust (pull dump), 16-inch or 12-inch elbow along with either15-inch, 22-inch or 27-inch low pressure inflation hose.
• A set of marine-grade 316 stainless steel grommet mounting holes are used to attach wing to harness and/or singles mounting plate.
• Approximate dimensions uninflated: 21.5-in H x 15-in W (54.6cm x 38.1cm)
• 2.4 lbs (1 kg





The Voyager Series wings, donut-shaped air cells for single-tank diving, provide divers essential buoyancy control. With 35 lbs. (15.8 kg) of lift, streamlined side panels, and their minimalist, oval shape, the wings’ design provides maximum comfort throughout the dive with no squeezing or restrictions. The donut-shape design provides greater stability and control while diving by keeping an even volume of inflation on the top, sides, and bottom. This, along with an integrated Gusset Control System (GCS) that reduces “taco” effect and promotes effective streamlining, puts buoyancy where it is most needed (throughout the torso supporting the weight of the tank) for superior horizontal trim. The GCS is not like a bungee wing because it does not restrict airflow; instead, the GCS promotes added streamlining and buoyancy control, yet allows the wing to inflate to its full capacity. Even floating on the surface, the Voyager Series wings excel by keeping the diver in a vertical position when used in conjunction with a harness and crotch strap; it won’t tip you over.

Divers may choose from our durable 1680 ballistic nylon EXP material or our even more rugged SuperFabric® brand technology XT material that creates an armor-clad outer shell that is impervious to damaging pinches and cuts, with a 1680 ballistic nylon diver’s side panel. Both the Voyager EXP (Model BC4700) and Voyager XT (Model5200) are further enhanced with a heavy-duty, 210 denier nylon laminated bladder.

Equipped with a 16-inch rapid exhaust (pull dump), appropriate low-pressure inflation hose, and two sets of marine-grade 316 stainless steel grommet mounting holes for attaching the wing to a harness, the Voyager Series can accommodate any diver’s needs.

As a part of our modular BCD system, the Voyager Series wings can be matched with either a TransPac® XT, Transplate, or any metal back plate and webbing harness.

Made in the USA.

Outer bag
Model BC4700 Voyager EXP: Durable 1680 denier ballistic nylon (highly resistant to pinches and punctures)
Inner bladder: 210-denier nylon laminated (highly resistant to pinches and punctures)
Wing Gusset Control system for streamlining
Lift: 35 lbs. (15.8 kg)
LP inflator hose
16-inch rapid exhaust (pull-dump) or 12- or 16-inch elbow
Mounting: Two sets of marine-grade 316 stainless steel grommet holes are used to attach wing to harness and set diver trim
Urethane flanges: Welded in place, which make it easy to switch out corrugated hoses and over pressurization valves without tools
Weight: 2.8 lbs. (1.27 kg)
Size: 22-in. H x 19-in. W (55.8cm x 48.3cm)
Made in the USA
